With rapidly growing urban populations, efficient mobility in buildings is no longer a luxury but an absolute necessity. TWIN is engineered to optimize building footprints, minimize wait times, and enhance the flow of people throughout the building.
Efficiency with precision: How TWIN works
Specifications at a glance
| Travel height | up to 250 m |
| Speed | from 3.0 m/s up to 7.0 m/s |
| Capacity | up to 1,800 kg* |
*Higher rated load available upon request

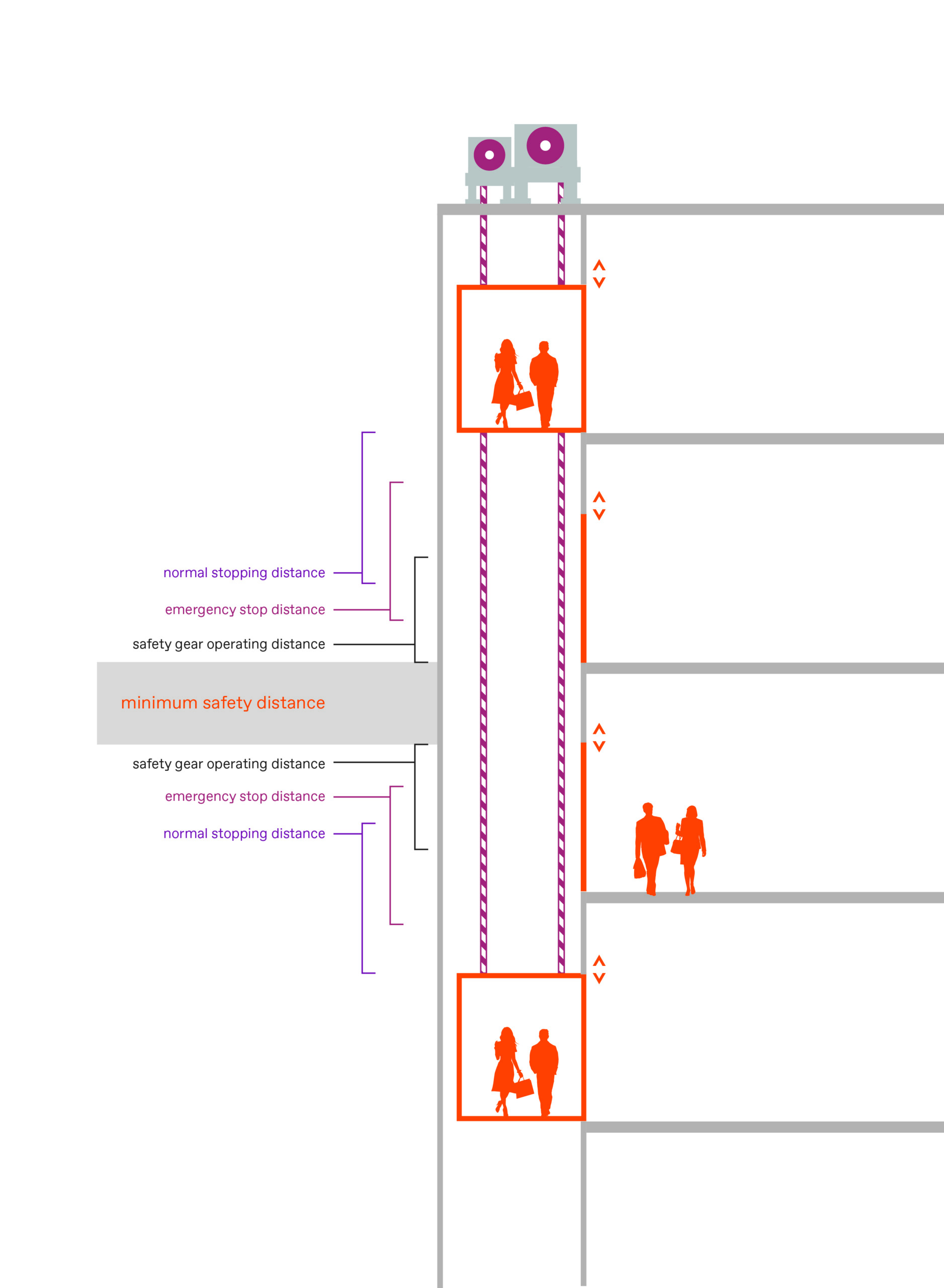

The TWIN system features two cabins operating independently in one shaft, always at a minimum safety distance from each other. Each of the cabins has its own traction drive, controller, ropes, counterweight and governor, but they share the same guide rails and landing doors. This unique arrangement saves space in the building core.
Dynamic High-Rise
Conventional Approach

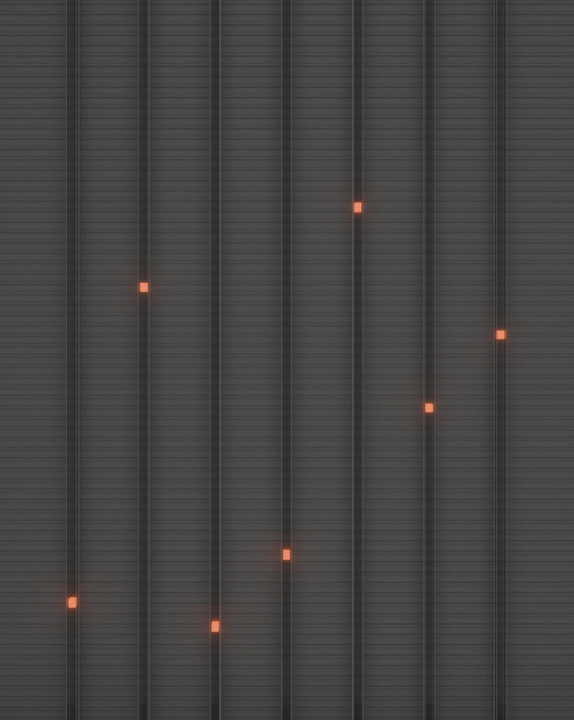

Single deck solution
1 cabin in 1 shaft

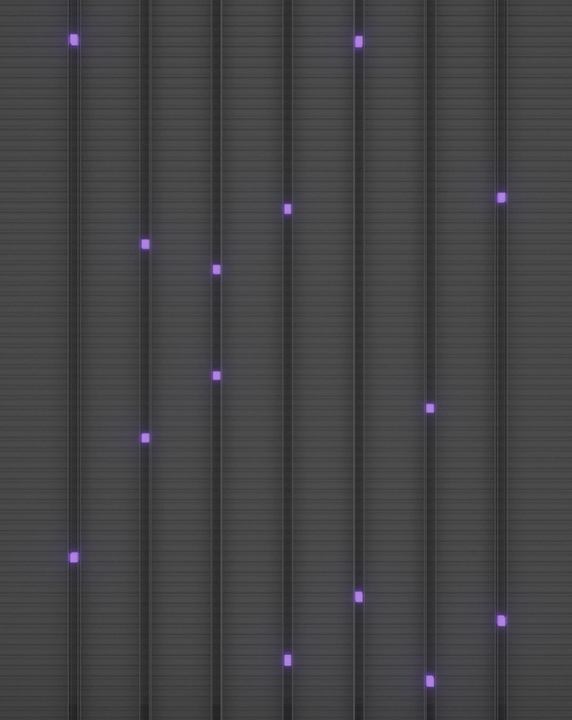

TWIN solution
2 independently moving cabins in 1 shaft. TWIN gives you more handling capacity and more flexibility.

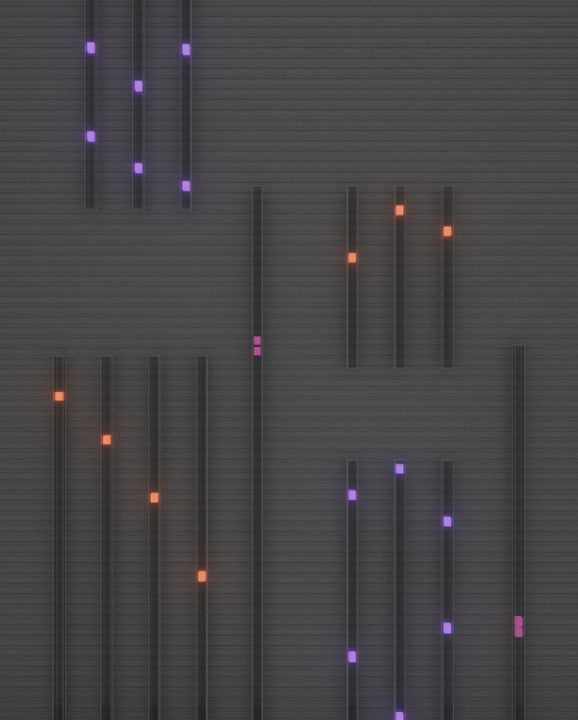

Combined High-Rise solution
TK Elevator can offer your high-rise building the appropriate vertical transportation solutions, combining high-speed HELIX, double deck and TWIN elevators.
