For buildings exceeding 35 floors, a recommended elevator configuration typically includes different elevator groups for low-, medium-, and high-rise levels. In very tall buildings, configurations using distribution floors and transfer levels as well as shafts “stacked” one above the other are recommended. The groups serving the upper zones are stacked above those serving the lower zones and are accessed by taking express elevators from the ground floor to transfer levels, where they are distributed to the appropriate local elevator.
TWIN in high-rise projects: planning for elevator groups
For incoming and outgoing traffic, the TWIN system divides the shaft into virtual zones in the area where both elevator cabins can move independently of one another. Passengers with their destination in the upper zone of the shaft enter the upper elevator cabin via the upper lobby. The same principle applies to the lower elevator cabin and the lower zone of the shaft. For all other traffic (interfloor traffic), the virtual zones are “opened” and both TWIN elevator cabins serve the complete shaft.
When used to serve local groups in this way, TWIN raises the benchmark for building efficiency and traffic performance. In an optimized configuration, double-deck shuttles can feed two sky lobbies simultaneously, while independent TWIN cabins dynamically distribute passengers to their destinations. This strategy minimizes shaft requirements and avoids issues such as stack effects, building sway, crowded lobbies, and phantom stops.
Above configuration includes:
Low-rise: 1 HELIX + 7 TWIN
High-rise: 5 TWIN + 1 HELIX

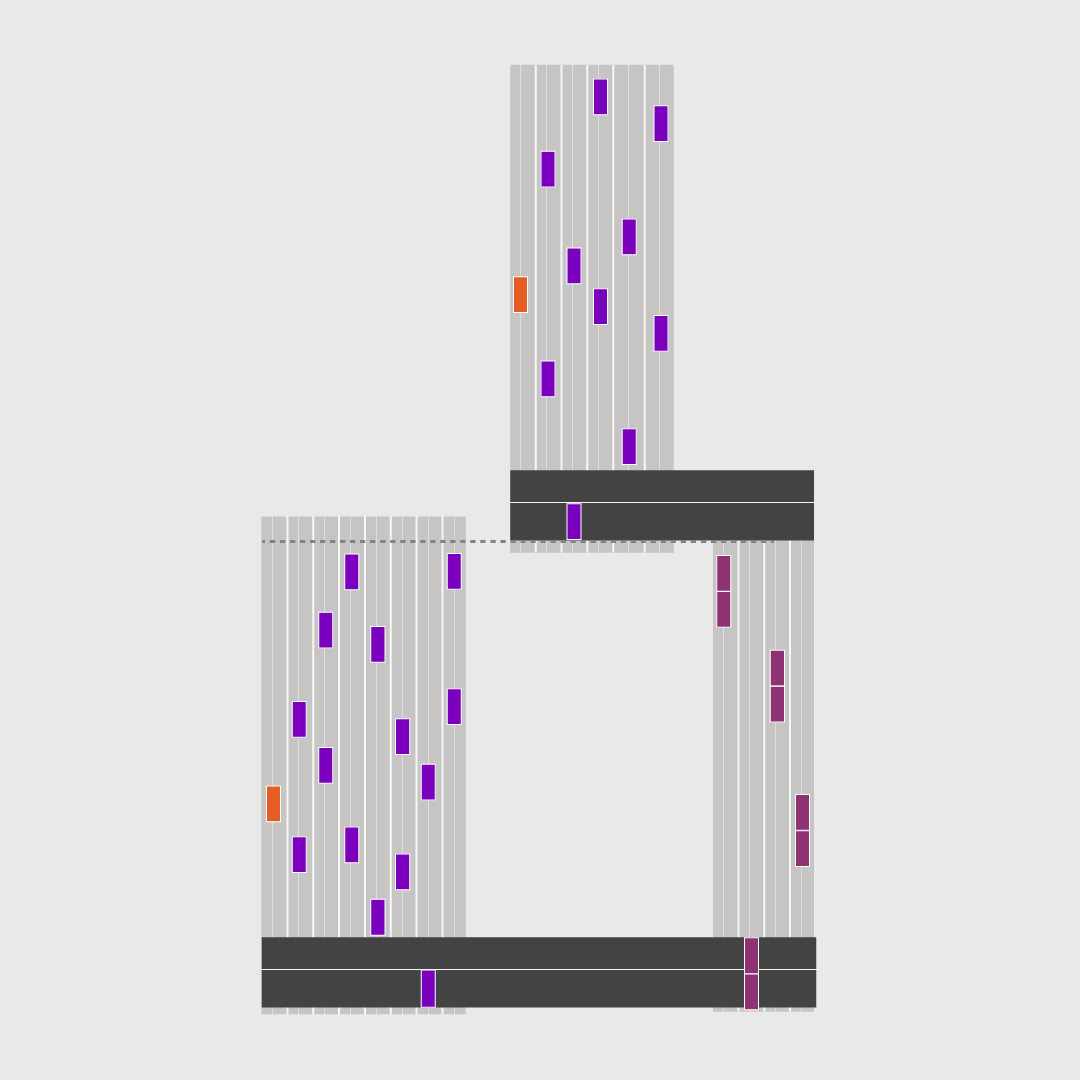

Above configuration includes:
Low-rise: 1 HELIX + 7 TWIN
Shuttle: 4 double deck
High-rise: 1 HELIX + 5 TWIN
TK Elevator has a High-Rise Competency Center headquartered in Esslingen, Germany who collaborate with global experts to analyze your project’s passenger traffic cycles and will optimize the shaft, elevator and escalator requirements for your building. With over 20 years of accumulative experience, our experts have analyzed and provided solutions for some of the most complex High-Rise projects globally.
Build beyond limits: Dynamic High-Rise by TK Elevator
TWIN is fully integrated with TK Elevator’s new, digital-first approach to High-Rise mobility, designed to meet the performance and reliability demands of modern skyscrapers. The framework combines advanced engineering with connected, AI supported technologies to enhance uptime, availability, efficiency, and overall system resilience.
Dynamic High-Rise unifies TKE’s extensive range of high-rise solutions, from single-deck and TWIN systems to double deck shuttle configurations, Shaft Climber for construction phases, and additional specialized applications. By integrating these technologies into one coordinated platform, Dynamic High-Rise provides developers, architects, and consultants with broader design flexibility and a more streamlined approach to vertical mobility planning.
