With its broad and versatile range of high-rise solutions, TK Elevator can help you to design a flexible and future-proof mobility solution that is tailored for your building. Pioneering technologies like the TWIN elevator help you to optimize flows, free up rentable space, and reduce running costs.
Leave your limits behind

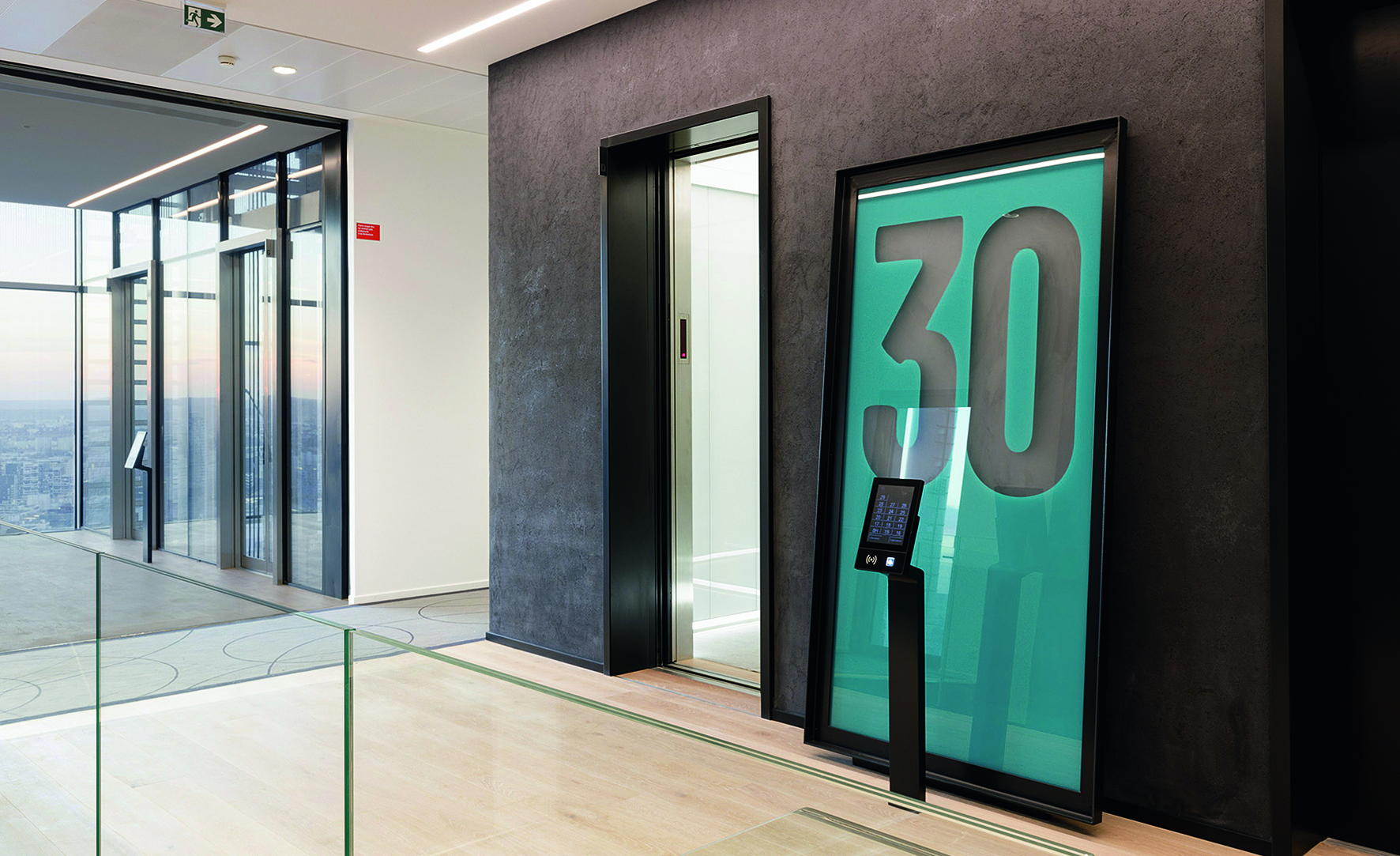

EOX: Build beyond energy costs
Eco-efficient and fully digital, EOX future-proofs your buildings with the latest AI-driven and energy-saving technologies. Its high-tech cabin design includes the AGILE Infotainment display as standard, keeping passengers informed on their journey progress as well as the latest news and weather. Its energy-saving technologies include regenerative drive, LED lighting, standby and ECO modes, and energy consumption reports via the customer portal.
TWIN: Build beyond wait times
TKE’s one-of-a-kind TWIN elevator gives you the same conveyance capacity as a traditional elevator in up to 50% less space (depending on the building configuration). It features two independent cars in the same shaft, using the same guide rails and landing doors. Each car is equipped with its own traction drive, controller, ropes, counterweight, and governor. An intelligent destination selection and control system gets people to their destination faster by grouping individuals travelling to the same floor. TWIN can transport up to 40% more passengers than standard elevators. It also boasts a TÜV-tested safety concept to satisfy even the most stringent requirements.
Flexible configurations for next-generation mobility
TWIN can be used to serve local groups, raising the benchmark for building efficiency and traffic performance. In an optimized configuration, double-deck shuttles can feed two sky lobbies simultaneously, while independent TWIN cabins dynamically distribute passengers to their destinations. This strategy minimizes shaft requirements and avoids issues such as stack effects, building sway, crowded lobbies, and phantom stops.
double deck: Build beyond capacity
Featuring two permanently linked cars in the same shaft, the double deck elevator is particularly efficient as an express shuttle system to carry large flows from two main entrance levels to a sky lobby. Used in this way, it offers high energy efficiency with minimal dwell times and no intermediate stops.
| Specifications | EOX | TWIN | double deck | HELIX |
| Speed | up to 3 m/s | up to 7 m/s | up to 10 m/s | up to 7 m/s |
| Load per cabin | up to 2,500 kg | up to 2x 1,800 kg | up to 2,000 kg | up to 2,000 kg |
| Travel height | max. 120 m | max. 250 m | max. 500 m | max. 250 m |
| Max. stops | 40 | 80 | 60 | 80 |
| Cabin design | standard/custom | custom | custom | standard/custom |
velino: Make your vision complete
The velino series escalators enable a fully integrated mobility concept for modern high-rises. As well as creating vital links in multi-floor lobbies and foyers, the range includes multiple design and functionality options to give your project a unique touch.
| Specifications | Velino |
| Speed | 0.5 to 0.65 m.s |
| Rise | 1.35 to 15 m |
| Inclination | 30° and 35° |
| Step width | 600 | 800 | 1000 mm |
