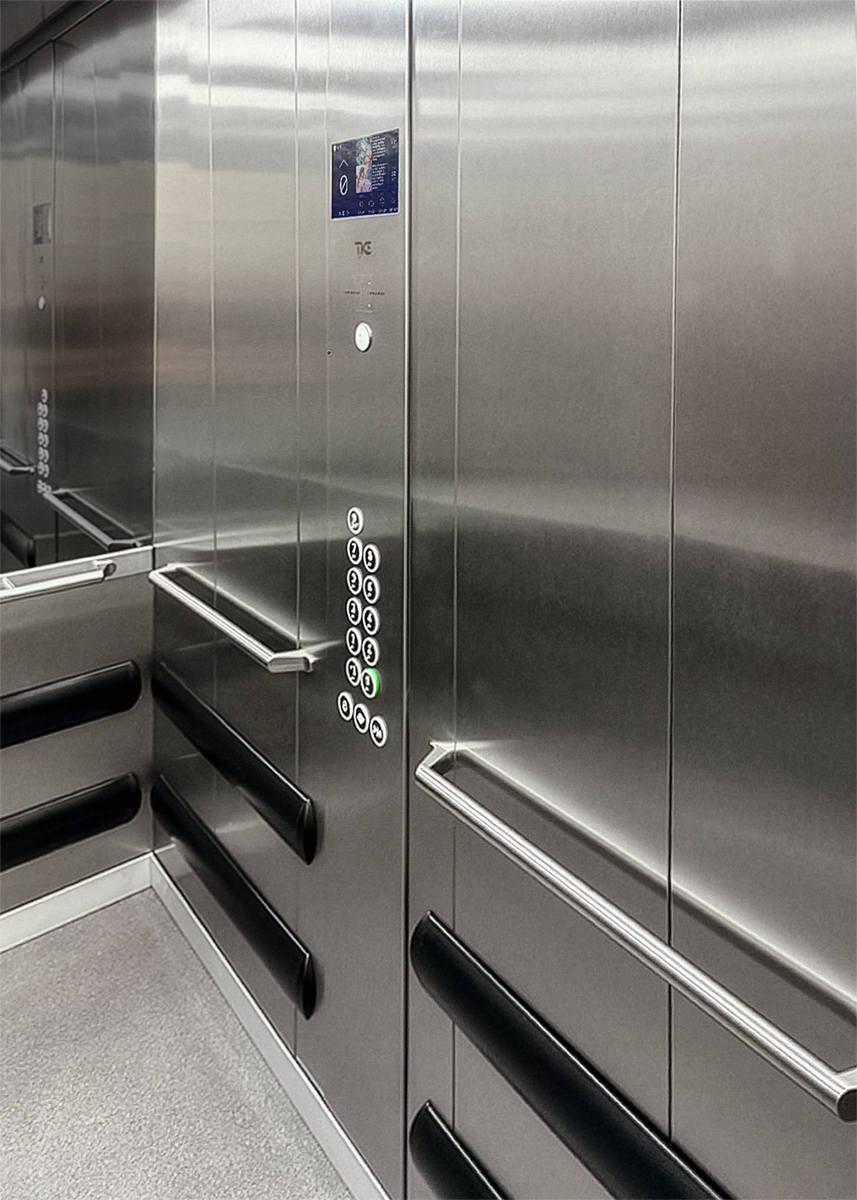

Large offices, hotels, healthcare facilities, public buildings and retail businesses require a sophisticated logistical backbone. That’s why the EOX platform includes a heavy goods variant developed for transporting people and goods as heavy as two tons. It’s sturdy and reinforced throughout the cabin, fully geared towards functionality, but still a true EOX with all the features and benefits that make it eco-efficient and natively digital.

Technical scope

Rated loads: 1600 / 1800 / 2000 / 2500 kg

Speed: 1.0 / 1.6 / 1.75 m/s

Travel height: max. 16 m

Application range

The heavy goods variant of EOX is suitable for use with hand trucks or shopping carts. Forklifts can’t be driven into the cabin as they would typically exceed the maximum sill load of 0.85*Q, which equals 2 tons being loaded into a 2500 kg elevator at once.

Mirror

The standard configuration is without mirror. For Design line B cabins the full width / mid height mirror is available. Any double entrance configuration can be ordered with an upper full width mirror.

Bumpers

Stainless steel or black PVC bumpers are available.

Ceiling

LED Plate ceilings is our recommended standard option, but suspended ceilings can be configured.

Flooring

Choose between aluminium or stainless steel embossed flooring, or two reinforced vinyl designs. You can also install your own flooring (≤25 mm recess).

Operating panels
All options are available, except for variants with glass frontplate.
