Buildings above a certain height require a dedicated lift that is specifically equipped to be used by firefighters during a building fire or other emergency. EOX can be configured to meet the demands of the EN 81-72 firefighter elevator standard.
EOX as a firefighter elevator
Firefighter lift features

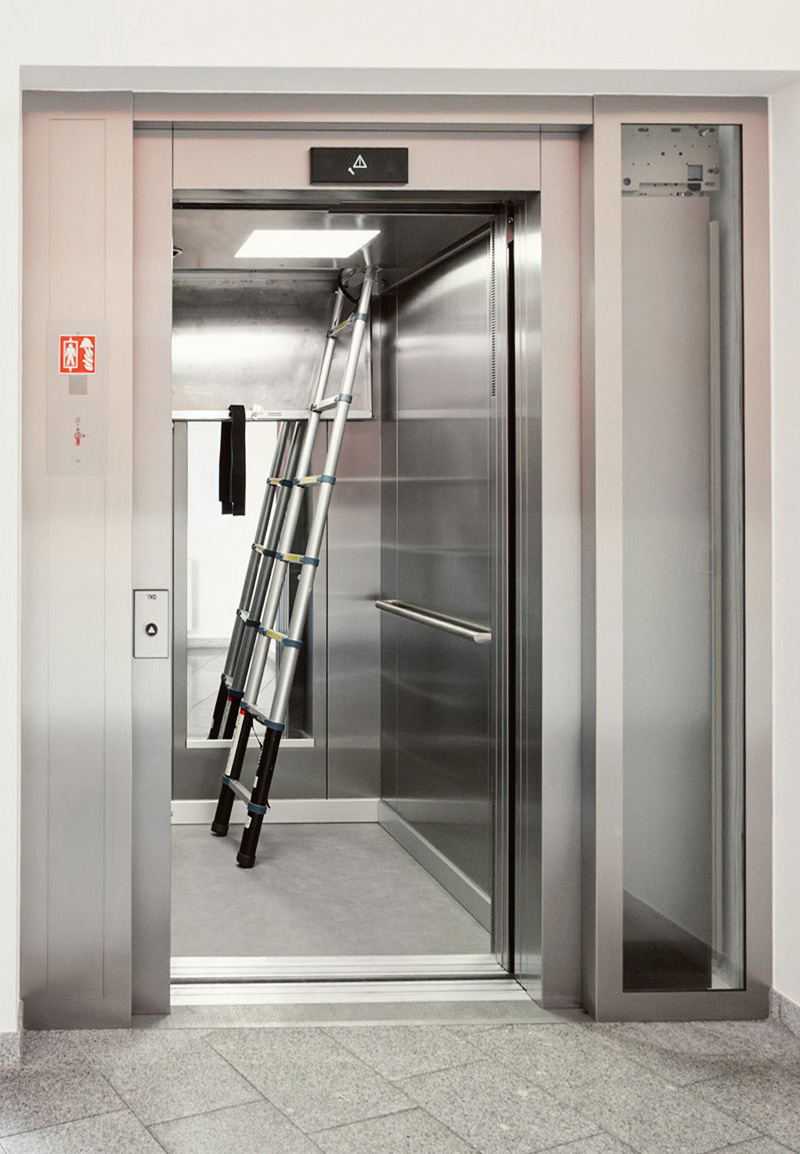

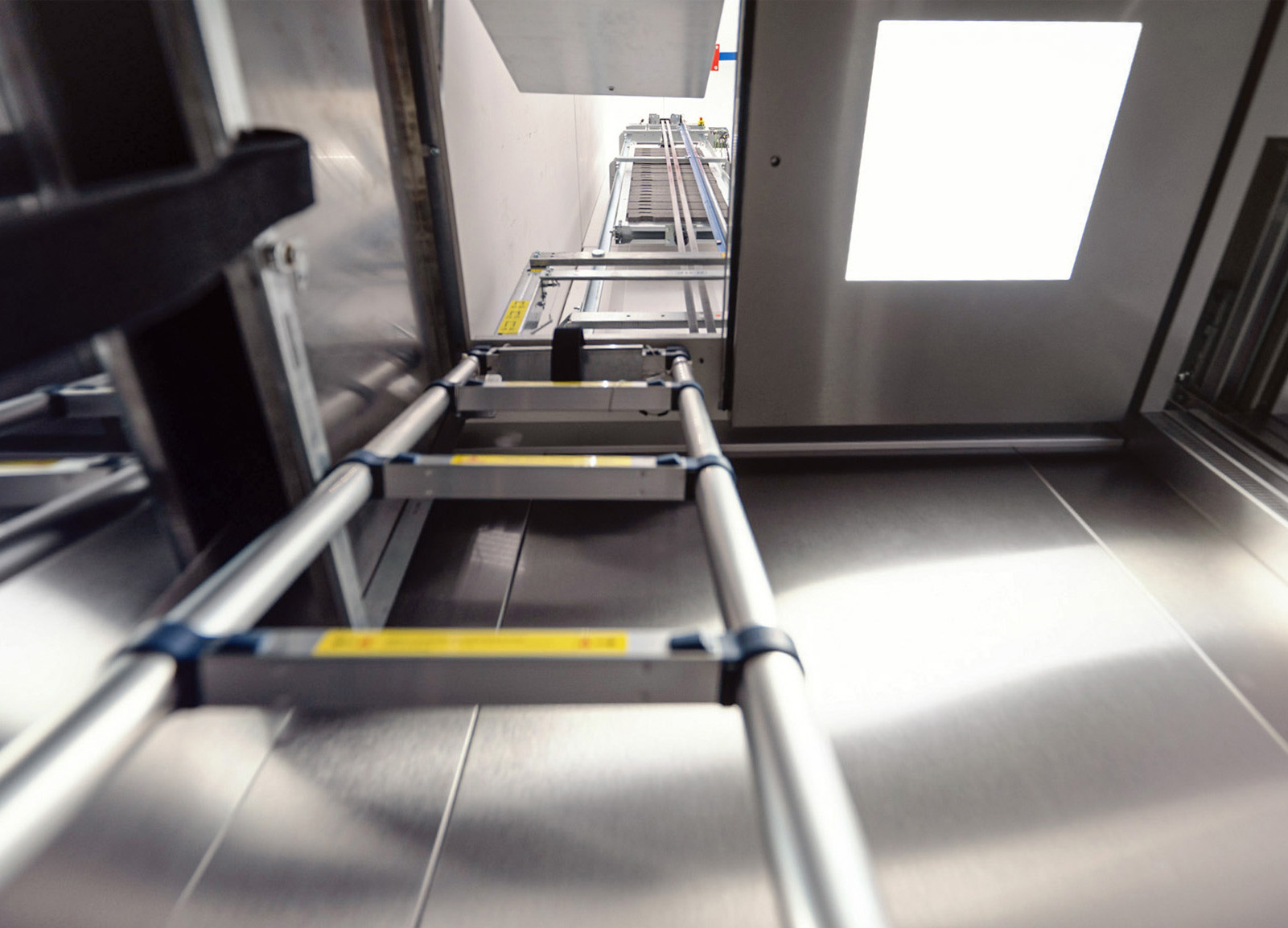

To remain operational under smoky and damp conditions, the EOX firefighter lift fulfils IPX3 protection requirements for electrical components in the shaft and the cabin. The cabin ceiling includes a 700×500 mm emergency trapdoor with an integrated telescopic ladder, allowing firefighters to exit and enter through the elevator shaft. For access control and intercom between the cabin and the landing, a special firefighter access box is supplied.
Cabin design

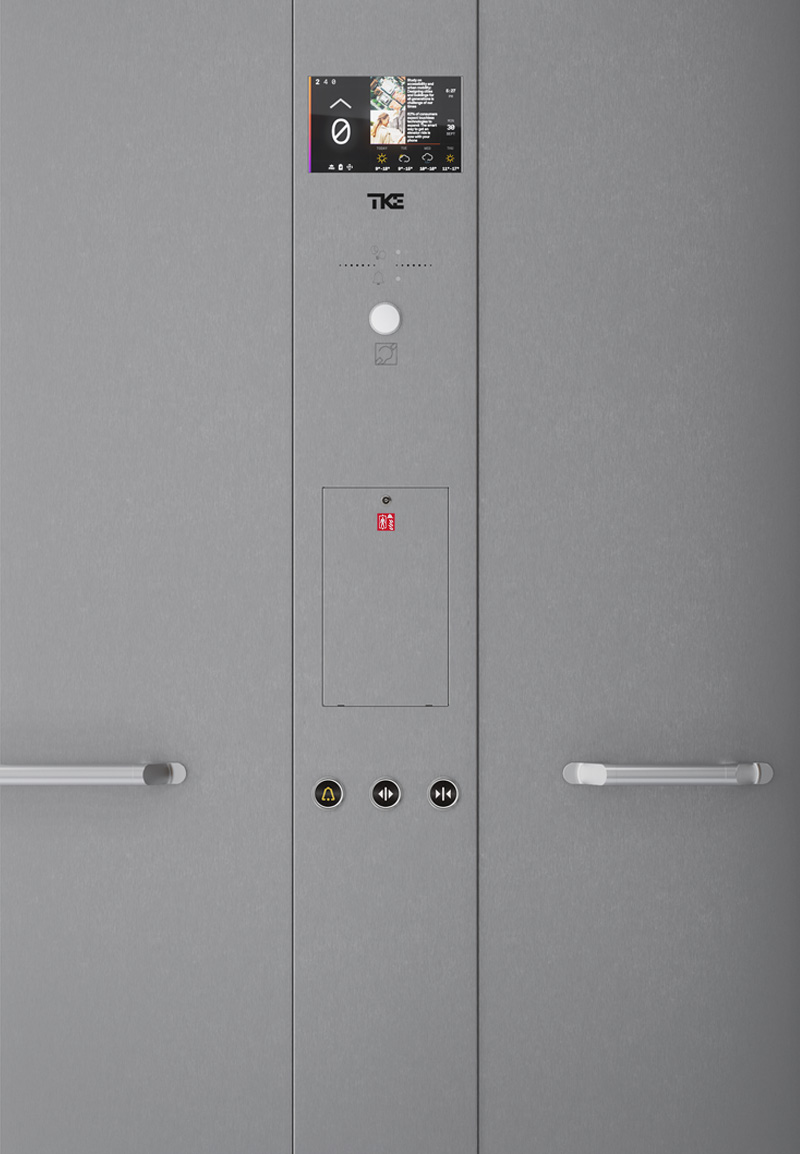

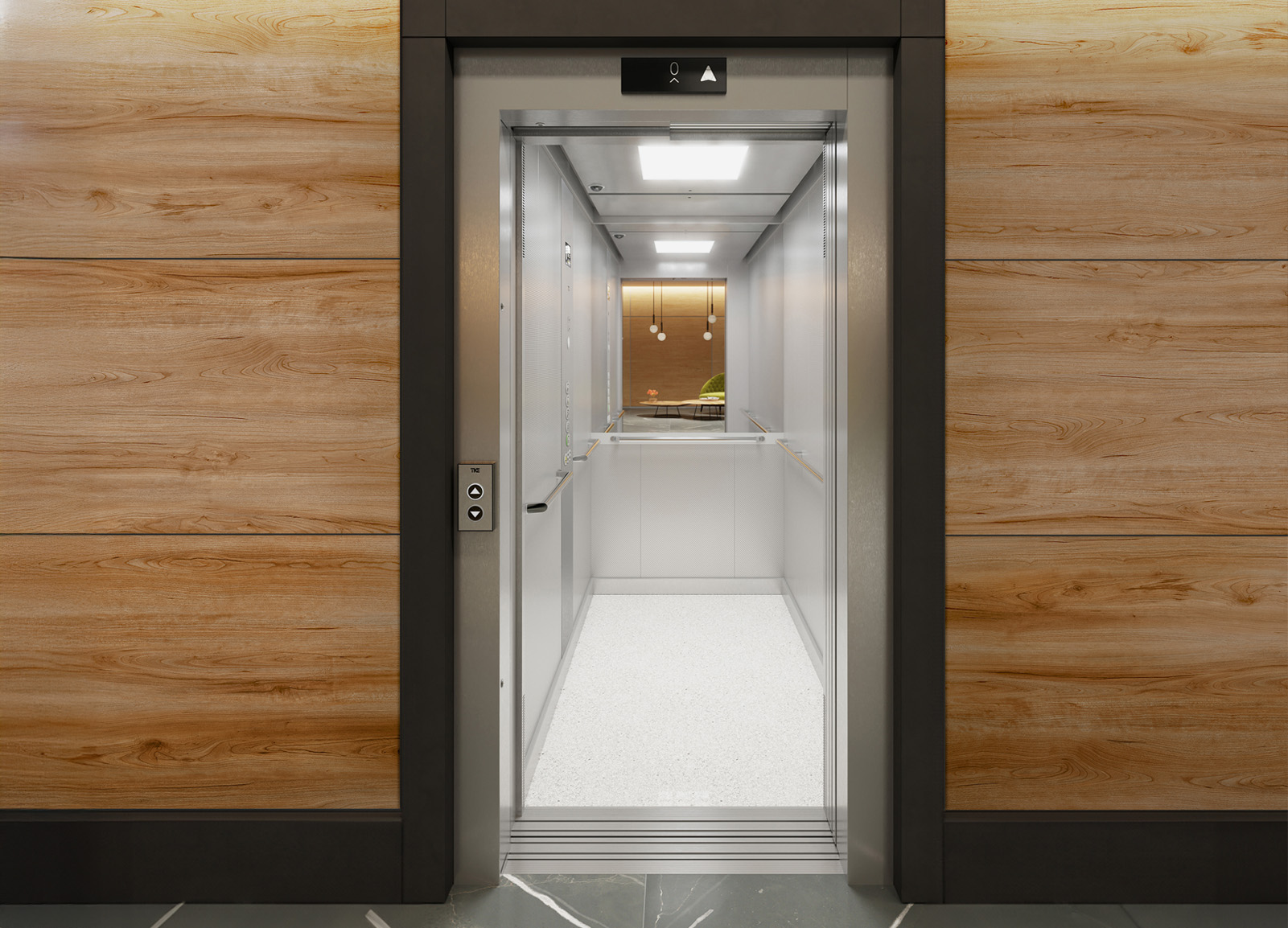

Stainless steel and stainless steel linen cabins from Design lines C and B. All mirror, handrail and flooring options are available. Ceiling options offered are special firefighter lift versions of the Steel Grille and Steel Lightbox ceilings. The EOX firefighter lift’s IL Variable cabin operating panel and Series 50 landing operating panels come equipped with vandal-resistant VB push-buttons. In combination with AGILE Destination Controls a version of the IL Variable DSC with integrated keypad is available.
Technical scope
825 to 1.600 kg, up to 3.0 m/s, up to 120 m travel height.
