AGILE Destination Controls intelligent dispatching

Intelligent dispatching with
AGILE Destination Controls

AGILE Destination Controls is TK Elevator’s intelligent dispatching system suitable for groups of three or more EOX elevators that dramatically improves traffic flow by directing people to the elevator that will get them to their destination in the most efficient way. Derived directly from TKE’s performance high-rise systems and now available for EOX, AGILE Destination Controls’ algorithm groups passengers according to the floor they are travelling to, reducing the number of stops along the way for everybody. The results are up to 25% shorter ride times and an increase of up to 30% in elevator handling capacity compared to conventional systems. AGILE Destination Controls is the way to put a rush on rush hour!

For the smoothest-possible traffic flow

If needed, more descriptive content about how AGILE Destination Controls avoids traffic jams and annoying situations with full cabins stopping at empty landings on their way to the cafeteria at lunch time. Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco.

AGILE Destination Controls: How it works

STEP 1

Arriving passengers select their destination floor on the AGILE terminals at the landing

STEP 2

The dispatch algorithm calculates the most efficient route and assigns the passengers to the individual elevators, grouping them by destination

STEP 3

Passengers board their assigned elevator and are transported to their destination floors with the minimum possible stops in between

AGILE Destination Controls at the landing

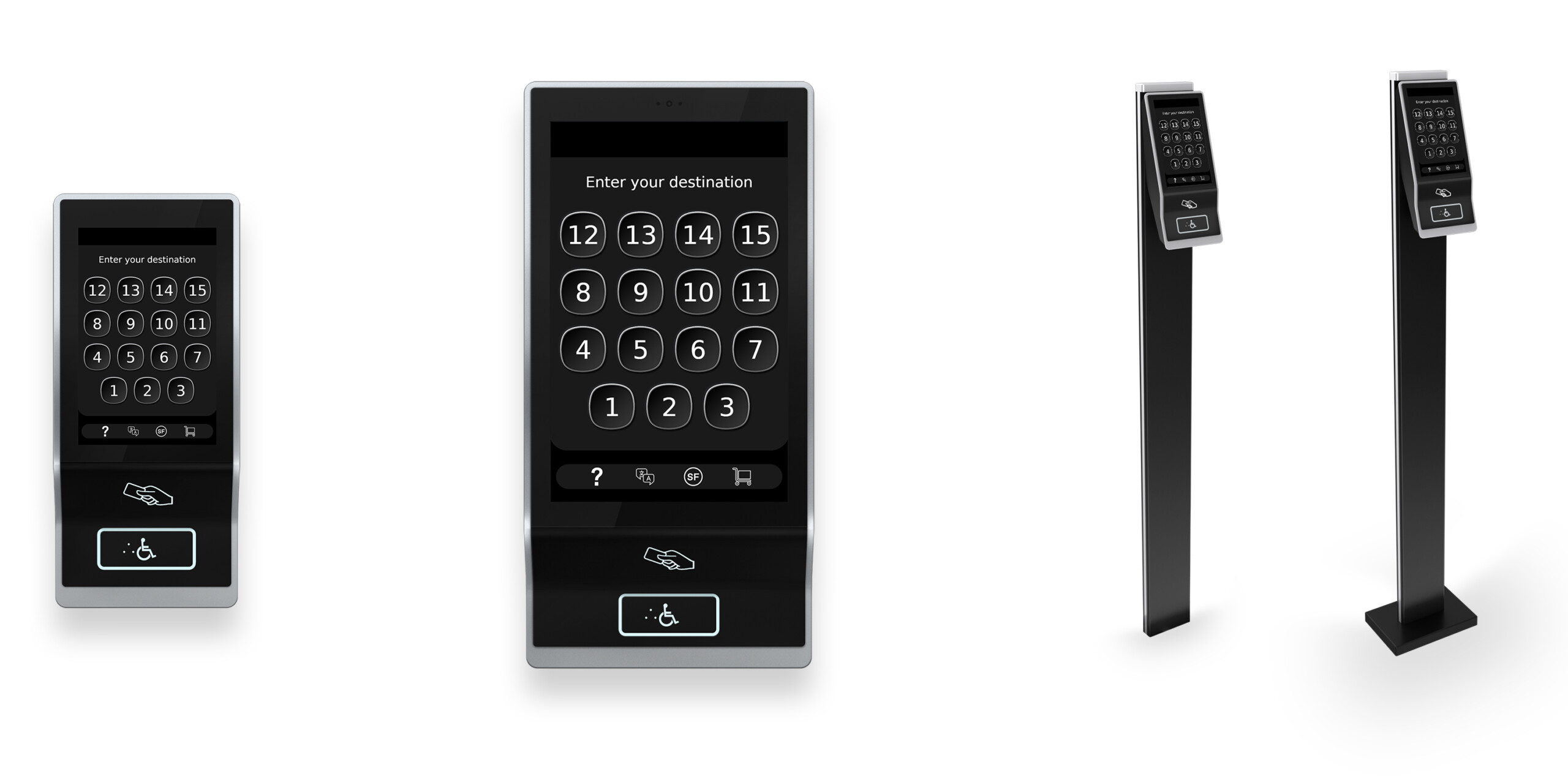

Touch Terminals with 7″ or 12″ display

Descriptive text about main features and mounting options for the terminals. Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco. Lorem ipsum dolor sit amet, consectetur adipiscing.

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco. Lorem ipsum dolor sit amet, consectetur adipiscing.

Terminal with 7 inch touchscreen

Touchscreen display: 7″ diagonal, 98×148 mm, 1280×800 pixel, 16:10 ratio, 16.7 million colours

Terminal with 12 inch touchscreen

Touchscreen display: 12.1″ diagonal, 162×260 mm, 1280×800 pixel, 16:10 ratio, 16.7 million colours

7″ Terminal on pedestal

For embedded installation flush with floor

7″ Terminal on pedestal with base platform

For standing installation on floor surface

Sensors and optional camera

An integrated ambient light sensor adjusts the display brightness based on the prevailing light conditions to ensure optimal legibility.

The integrated motion sensor deactivates the display’s auto-dimming function when passengers approach the terminal.

For the optional camera, please consult your TK Elevator representative for use-cases and availability in your region.

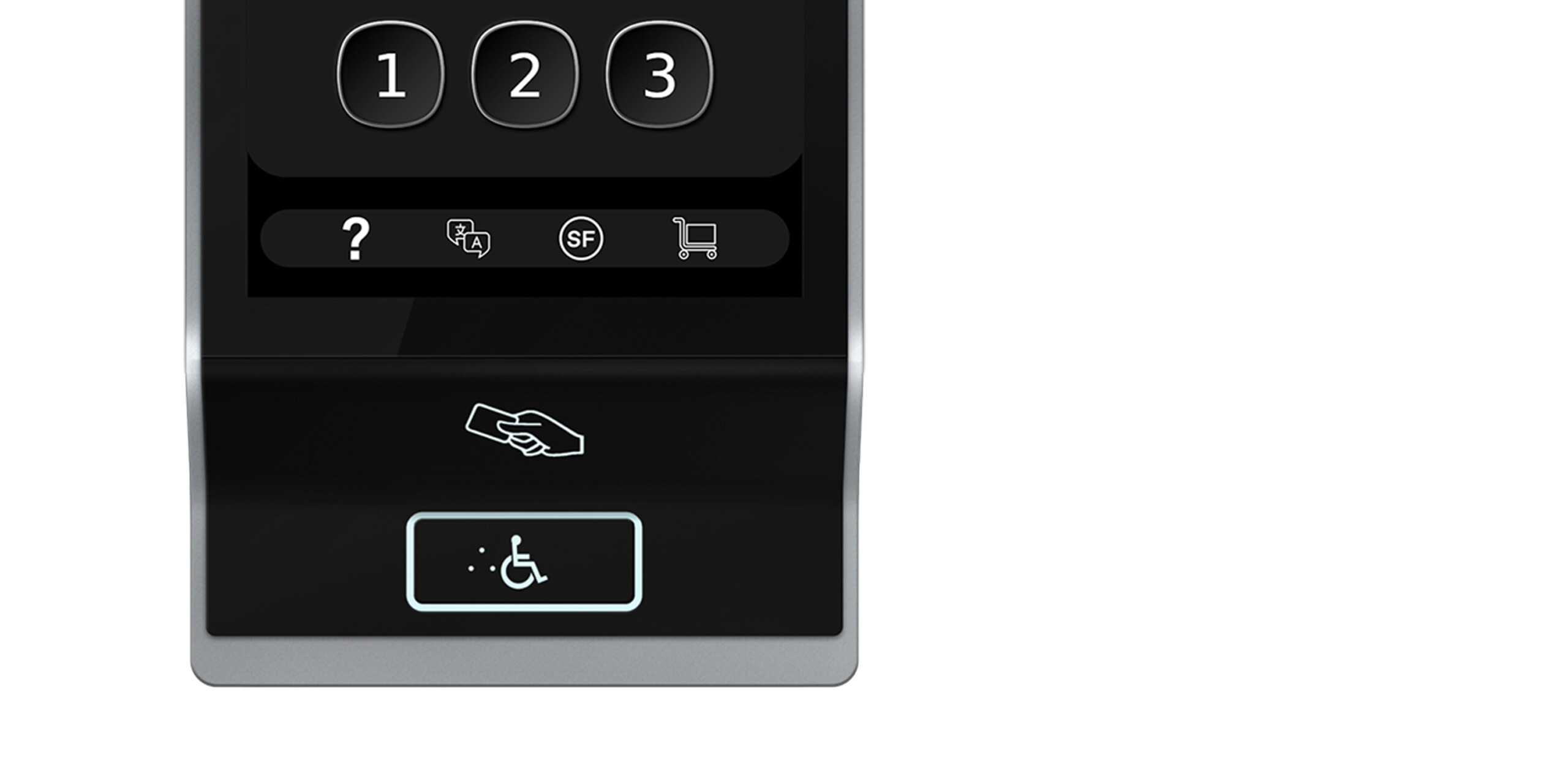

Accessibility button

Hardware button to support passengers with disabilities with voice guidance and extending walking and door dwell times. When the accessibility button is operated, the floor numbers are listed audibly in ascending order via the built-in loudspeaker. As soon as the desired destination floor has been announced, the accessibility button must be pressed again. This confirms that floor as the destination floor. The elevator selected by the system is then announced. Complies with EN 81-70.

RFID card reader (optional)

Can be linked to building access control systems to allow access to restricted floors or to activate special functions (e.g. cleaning mode, VIP mode).

Functions buttons

AGILE Destination Controls in the cabin

IL Variable DSC

Next Level Indicator

Lift Identifier

Customisable interface design

Short text on Design Center. Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco. Lorem ipsum dolor sit amet, consectetur adipiscing.

Combine with AGILE Access

Text about how swiping your access ID and calling the elevator to take you to your destination floor can work in one go when AGILE Access and DSC are combined. Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

Intelligent dispatching with AGILE Destination Controls
