Door options

Shaft layout with side-opening door L2

Single entrance

Double entrance with recess

Single entrance, shaft front wall with gap cover

Shaft layout with central-opening door C2

Single entrance

Double entrance with recess

Single entrance, shaft front wall with gap cover

Key
CWcar width
CDcar depth
CHcar height
SWshaft width
SDshaft depth
SHshaft head
SPshaft pit
DWdoor width
DHdoor height
FFLfinished floor level
UFLunfinished floor level
THtravel height
HSTmin. height between floors

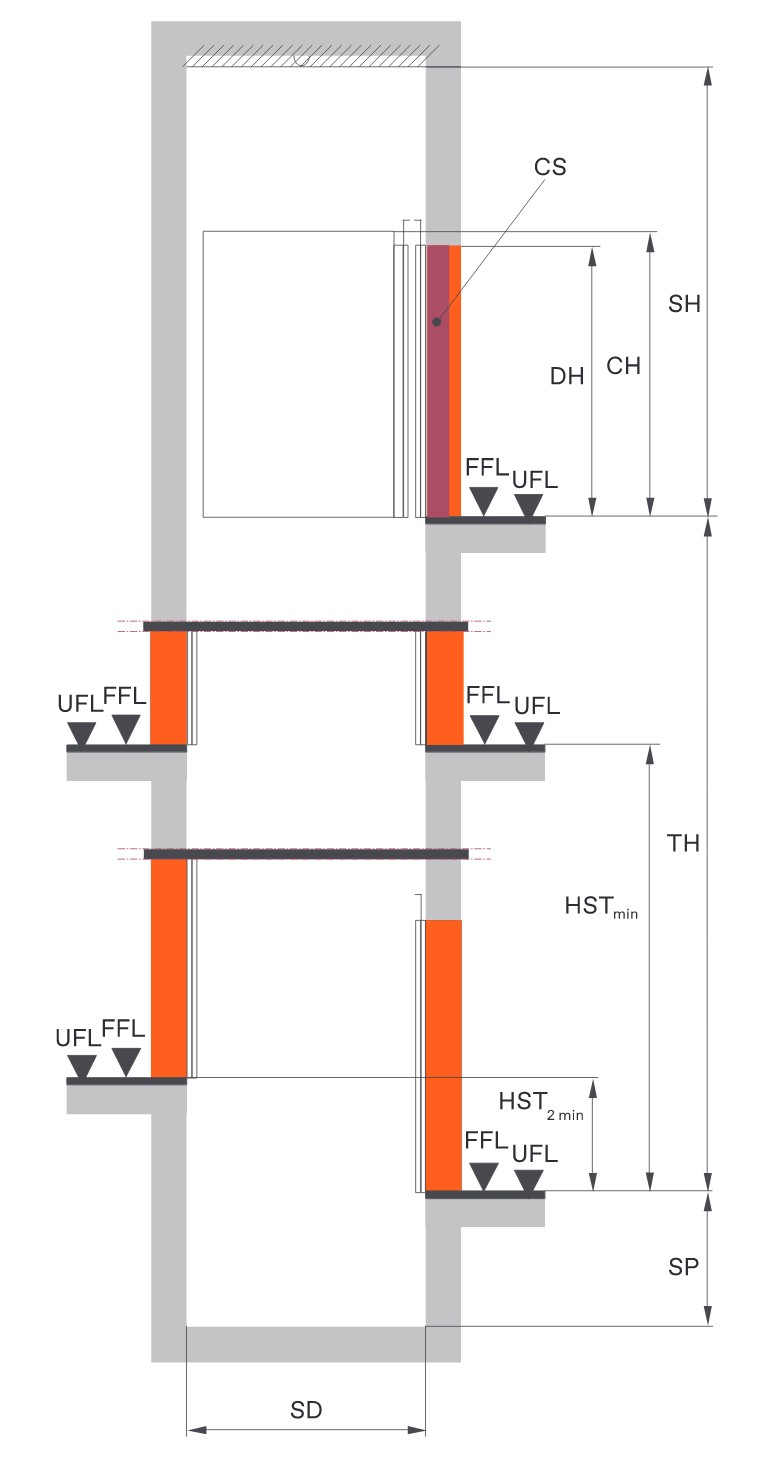

Shaft planning layout

Values
SpeedRated load (kg)
1.0 m/s<=1,000
1.0 m/s>1,000-1,600
1.6 m/s<=1,000
1.6 m/s>1,000-1,600
1.6 m/s>=1,600
2.0 m/s>1,000-1,600
2.0 m/s<=1,000
2.5 m/s<=1,000
2.5 m/s>1,000-1,600
